HTTP Authentication

HTTP Authentication

HTTP Authentication is a mechanism that helps verify the client's identity and grants access to a specific web resource on a server.

HTTP Authentication
HTTP Authentication
HTTP Authentication
Profile Image

Muze

Muze

Muze

HTTP authentication plays a key role in securing websites. It acts as a barrier against unauthorized entry to the website. Users must provide a combination of username and password to access the site. The server validates these login details to determine if they correspond to an authorized account. Upon confirming the account's legitimacy, the server authenticates the user and grants access.

This blog will explain HTTP authentication, types of HTTP authentication, its benefits, how HTTP Authentication works, and provide an example on HTTP Authentication.

Understanding HTTP Authentication

HTTP authentication verifies a client's identity before granting access to a specific web resource. It serves as a gatekeeper, allowing only authorized individuals or systems to access certain information or services. The HTTP protocol incorporates this process as a crucial security measure to protect both users and organizations in the digital realm.

Understanding HTTP Authentication

Types of HTTP Authentication

HTTP authentication offers several types, each providing different levels of security and complexity.

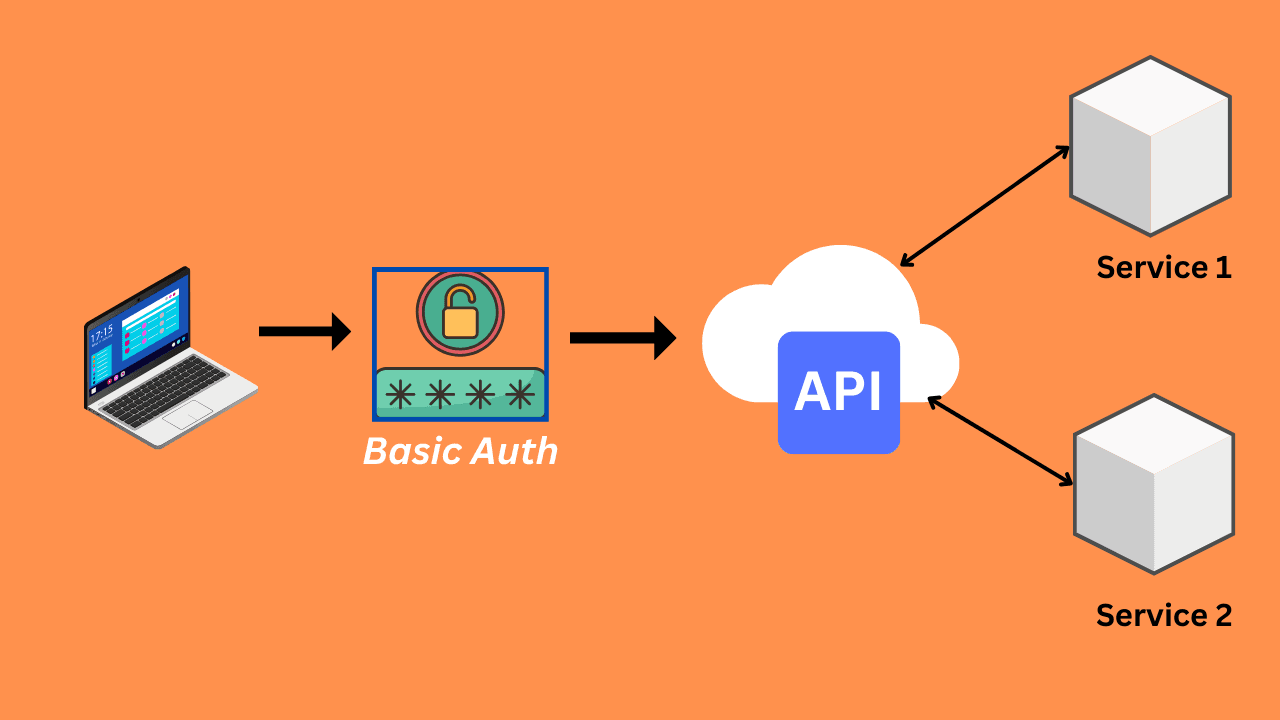

1. Basic Authentication

Basic Authentication uses a challenge-response mechanism where the server requests credentials from the client. The client provides a username and password for authentication. This single-factor authentication method relies solely on the user's credentials. However, Basic Authentication transmits credentials in clear text, which makes them vulnerable to interception and unauthorized access if encryption methods like TLS/SSL do not properly secure them.

2. Digest Authentication

Digest Authentication enhances the security of the challenge-response process. The server sends a nonce value—a unique, one-time code—to the client. The client combines this nonce with the username and password to generate a hash value using the MD5 algorithm.

It then sends this hash to the server for verification. By hashing the credentials instead of sending them in clear text, Digest Authentication offers a more secure method of transmitting sensitive information, reducing susceptibility to certain types of attacks, such as replay attacks.

3. Bearer Authentication

Bearer Authentication, also known as token-based authentication, implements a multi-factor security mechanism. It uses tokens as temporary proof of identity. Upon successful login, the user receives a token, often in the form of a JWT (JSON Web Token). The client uses this token for subsequent requests to the server, adding an extra layer of security.

Because the system generates and validates the token independently of the user's credentials, it reduces the risks associated with transmitting sensitive information multiple times. Modern web applications widely use Bearer Authentication due to its flexibility and enhanced security.

4. NTLM (New Technology LAN Manager)

Microsoft developed NTLM as a security protocol for authenticating users in Windows environments. Unlike Basic Authentication, NTLM employs a challenge-response mechanism where the server issues a challenge to the client, and the client responds with a hashed version of the user's credentials.

This method authenticates the user's identity without exposing their credentials, thus providing a higher level of security. Corporate networks commonly use NTLM, particularly for securing access to resources within a LAN (Local Area Network).

5. Negotiate Authentication

Negotiate Authentication improves upon NTLM by utilizing the Kerberos protocol as its underlying authentication provider. Kerberos, a robust authentication protocol, operates faster and more securely than NTLM.

It uses a "ticket" system, where users obtain a ticket-granting ticket (TGT) after their initial login. The system then uses this TGT to request service tickets for accessing specific resources. By incorporating Kerberos, Negotiate Authentication not only speeds up the authentication process but also provides stronger protection against various types of attacks, including man-in-the-middle attacks.

Benefits of using HTTP Authentication

HTTP Authentication offers several benefits that make it a widely used method for securing access to web resources. Here are some of the key benefits:

Simplicity and Efficiency

Developers and Security Engineers can easily implement HTTP Authentication, particularly Basic Authentication, without requiring additional software, plugins, or infrastructure beyond a standard web server.

This simplicity allows for quick and reliable security measures, especially beneficial for small to medium-sized applications needing rapid deployment. Configuring just a few lines in the server settings enables efficient implementation of security measures with minimal overhead.

Wide Support and Compatibility

HTTP Authentication enjoys universal support across various platforms, including web servers like Apache and Nginx, and all major web browsers. This broad compatibility allows for easy integration into existing systems without modifying client-side software. Its adherence to standard protocols ensures consistent behavior across diverse environments, making it a dependable choice for securing web applications on various platforms.

Access Control

HTTP Authentication effectively enforces access control by requiring users to provide valid credentials before accessing certain resources. This prevents unauthorized access and protects sensitive data, crucial for web applications handling personal information, financial data, or other confidential content.

Administrators can tailor access control to different user roles, defining varying levels of access based on user identity. This capability enhances web applications' security posture by ensuring only authorized users can perform specific actions or view certain data.

Multiple Authentication Options

HTTP Authentication supports multiple authentication schemes, each with unique security characteristics. Digest Authentication improves security by encrypting credentials before transmission.

More advanced schemes like OAuth enable third-party authentication, allowing users to authenticate via other services (e.g., Google, Facebook) without sharing credentials with the application itself. This flexibility allows developers and security engineers to choose the authentication method that best fits their security requirements and user experience goals.

Integration with HTTPS

Combining HTTP Authentication with HTTPS significantly enhances security. HTTPS encrypts the entire communication channel, including headers and payloads, protecting credentials from interception even when using Basic Authentication.

This combination proves crucial for applications handling sensitive data, safeguarding against common network-based attacks such as man-in-the-middle attacks. Using HTTPS ensures a secure authentication process, making it much more difficult for attackers to compromise user credentials.

How Does HTTP Authentication Work?

Several types of HTTP authentication mechanisms serve different security needs. Here's how HTTP authentication works:

1. Request for a Protected Resource

A client, such as a web browser or mobile app, attempts to access a protected resource on a web server. The server checks for valid authentication credentials, which could be a username and password, a token, or other authentication data.

If the client hasn't sent credentials or has provided incorrect or expired ones, the server denies access to the resource. Instead, it responds with a 401 Unauthorized status code, indicating that the request requires user authentication before proceeding.

2. Authentication Challenge

The server sends an authentication challenge back to the client in response to the unauthorized request. It includes this challenge in the WWW-Authenticate header of the 401 Unauthorized response.

The header specifies the required authentication type to access the resource. The client must understand the specified method to continue, setting the stage for providing the necessary credentials.

3. Client Response

After receiving the authentication challenge, the client responds by providing the required credentials. It typically prompts the user to enter their credentials, such as a username and password. The client then processes these credentials according to the authentication method specified by the server: Basic Authentication, Digest Authentication, or Bearer Token Authentication.

4. Server Verification

The server verifies the received credentials to determine their validity. It may check them against its own database or consult an external authentication service, such as a directory service, OAuth server, or another identity provider.

If the credentials are valid, the server allows the client to access the requested resource and responds with an appropriate HTTP status code, such as 200 OK. For invalid credentials, the server may prompt the client to retry authentication or deny access altogether.

5. Access Granted

After verifying the client's credentials and authenticating the user, the server grants access to the protected resources. The client's continued access to these resources can vary depending on the implementation:

  • Persistent Authorization: The server requires the client to include the Authorization header with every subsequent request, ensuring continuous verification. This approach maintains a high level of security by constantly validating the user's credentials. However, it increases network traffic and server load, especially for applications with frequent API calls.

  • Session Tokens: Alternatively, the server may issue a session token or a cookie for the client to use in subsequent requests, eliminating the need for users to re-enter credentials multiple times. This token or cookie maintains an active session until it expires or the user logs out.

HTTP Basic Authentication Example

Let's consider a web application that requires users to log in before accessing certain resources. This example simulates a request to a protected resource on a server using Basic Authentication.

Step 1: The Client Request

A client (such as a web browser or a REST client) sends an HTTP request to access a protected resource. The server requires authentication because it protects the resource.

GET /protected-resource HTTP/1.1
Host: example.com
Authorization: Basic dXNlcm5hbWU6cGFzc3dvcmQ

Step 2: The Client Sends the Authorization Header

The client includes the credentials in the Authorization header of the request as a Base64-encoded string. The string follows the format username:password.

In this example, dXNlcm5hbWU6cGFzc3dvcmQ= represents the Base64 encoding of username:password.

  • username = username

  • password = password

Step 3: The Server Validates the Credentials

Upon receiving the request, the server decodes the Authorization header to extract the username and password. It then compares these credentials against its records.

  • The server grants access to the protected resource if it matches the credentials.

  • The server returns a 401 Unauthorized response if it finds the credentials invalid.

Example of a Successful Response

HTTP/1.1 200 OK
Content-Type: text/html

<html>
  <body>
    <h1>Welcome to the protected resource!</h1>
  </body>
</html>

Example of a Failed Response

HTTP/1.1 401 Unauthorized
WWW-Authenticate: Basic realm="Access to the protected resource"

<html>
  <body>
    <h1>Unauthorized: Access is denied due to invalid credentials.</h1>
  </body>
</html>
  • Base64 Encoding: Basic Authentication encodes the username and password in Base64. This encoding does not encrypt the credentials—anyone can easily reverse Base64. Therefore, you must use HTTPS (SSL/TLS) to encrypt the entire request and protect the credentials from interception.

  • Authorization Header: The client sends the credentials in the Authorization header of the HTTP request.

  • 401 Unauthorized: The server responds with a 401 Unauthorized status code if it does not receive credentials or provides incorrect ones. This response indicates that the client must authenticate to access the resource.

Final Thoughts

HTTP Authentication plays a crucial role in web security, offering various methods to protect resources from unauthorized access. Developers and Security engineers can keep the organization’s applications secure and resilient against potential threats by understanding different types of HTTP authentication and following best practices.

Whether they use Basic Authentication for simple needs or adopt more robust solutions like OAuth and JWTs, developers and security engineers must select the right approach for the application's security requirements.
